Introduction

The M/V Saint Patrick is a state-of-the-art ABS-classed DP2 Multipurpose Work Vessel, designed for optimal performance in both offshore and shallow water operations. Built to handle the dynamic challenges of the West African Offshore Oil and Gas Industry, the vessel has been at the forefront of key operations, including Platform Maintenance, SPM Maintenance, Diving Support, ROV Operations, and Shallow Water Subsea Cable Laying.

Equipped with cutting-edge technology and superior infrastructure, M/V Saint Patrick provides unparalleled reliability and efficiency, making it a trusted asset in offshore projects.

General Specifications

• IMO Number: 8768919

• MMSI Number: 37534300

• Conversion Details: Converted from barge to Multipurpose Barge (2000)

• Flag: Nigeria

• Rebuilt & Upgraded: 2024

• Call Sign: J8XW7

• Port / Official No: Lagos / 8421

• Class: ABS A1

• Wheelhouse: Full Navigational Bridge DP2

Advanced Positioning & Navigation

A core strength of the M/V Saint Patrick is its Kongsberg K-Pos DPS2 dual redundancy positioning system, which ensures precision and stability in dynamic environments. With Furuno GP30 GPS receivers, advanced radar systems, and an Inmarsat Fleet Broadband 500, the vessel is well-equipped to handle navigation and positioning challenges with ease.

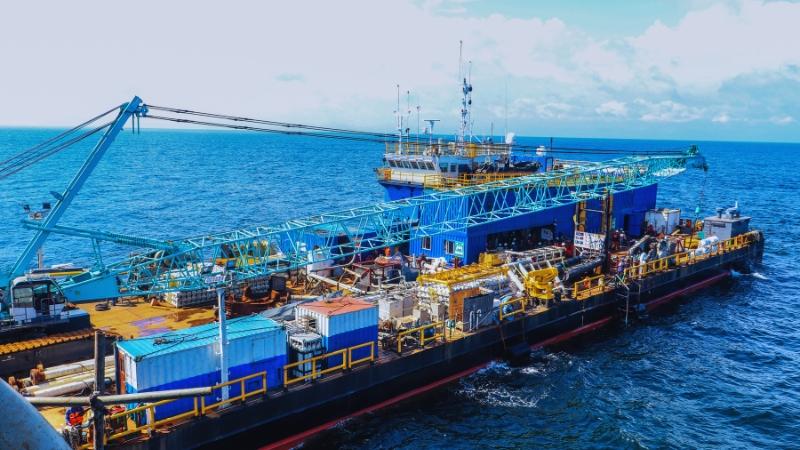

Superior Deck & Lifting Capabilities

The vessel boasts an expansive open deck space that serves as a stable and efficient platform for offshore lifting operations. Key deck features include:

• Kobelco CKE2500-11 Crane with a 250-ton lifting capacity

• Multiple winches, including Ingersoll-Rand Air Tugger Winches

• Deck load capacity of 3.5t per square meter

• Clear deck area of approximately 1,528 m², providing ample workspace and storage

Propulsion & Power

Designed for maximum efficiency, the M/V Saint Patrick is powered by four (4) MAN D 2842 LE403 engines with Schottel Azimuth Propulsion Units, delivering a total thrust of 2,880 HP. The vessel maintains a maximum speed of 8.0 knots and a service speed of 5.0 knots, ensuring smooth operations even in demanding environments. With a fuel range allowing up to 10,080 nautical miles at 5 knots, it is built for extended offshore missions.

Mooring System & Tank Capacities

To support its offshore operations, the vessel is fitted with a robust mooring system, including:

• Two (2) Smatco RB-90W Double Drum Winches, each tested to 37.5 tons

• Four (4) Delta Flipper Anchors (5,000kg each)

• Fuel Oil Capacity: 665.961 m³ (98% full)

• Potable Water Capacity: 828.4 m³

Onboard Facilities & Accommodation

Beyond its technical prowess, the M/V Saint Patrick offers world-class accommodation and onboard facilities, ensuring crew comfort and efficiency. Key features include:

• 24 Cabins accommodating up to 150 personnel

• Four-man hospital equipped with modern first-aid equipment and medicines

• Three recreation rooms, including a dedicated smokers’ lounge

• Fully equipped gymnasium with exercise equipment

• Two mess rooms with a combined 60-person capacity

• Offices & Conference Facilities with computers, a photocopier, and a technical library

• Industrial laundry facilities with high-capacity washers and dryers

• Refrigerated & frozen store rooms ensuring fresh provisions during extended offshore operations

Safety & Communication Systems

Safety is a top priority onboard the M/V Saint Patrick. The vessel complies with ABS and SOLAS regulations and is equipped with:

• Four (4) 25-man liferafts

• Rhino & Zodiac boats with 37HP Diesel Outboard Engines

• Lifejackets, pyrotechnics, and line-throwing apparatus as per SOLAS/ABS standards

For seamless communication, the vessel features a GMDSS system for areas A1, A2, and A3, along with:

• SSB Transceiver Radio

• Multiple VHF and handheld UHF radios

• Fleet Broadband 500 & Inmarsat M Telephone

• Radar Transponders and Programmable VHF Systems

Final Thoughts

With its unmatched capabilities, advanced technology, and crew-friendly facilities, the M/V Saint Patrick continues to be a reliable and efficient choice for offshore operations in West Africa. Whether it's subsea cable laying, offshore maintenance, or lifting operations, this vessel is built to deliver excellence in every mission.

For inquiries and service bookings, contact us at: Lekki Corporate Office: 11a Tokunbo Omisore Street, Lekki Phase 1, Lagos. Apapa Office: Tango Terminal, Equal Logistics Yard, KLTI, Apapa, Lagos. 📧 Email: offshoreservices@viscosupport.com 📞 Direct Line: +2348092264230
